Spraying is one of the most critical operations on any crop farm. A good sprayer applies chemicals evenly across the entire field, at the right rate, with minimal drift and waste. A poorly chosen sprayer leaves striped fields, wasted chemicals, and uneven pest control.

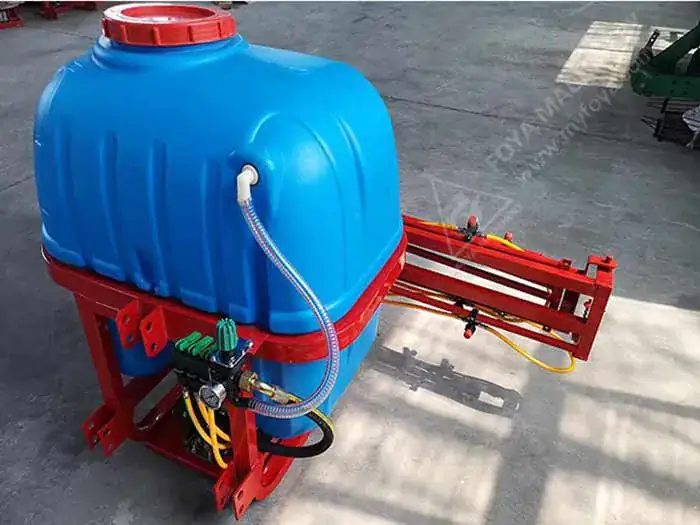

The tractor boom sprayer is the most widely used crop protection tool for row crops like wheat, corn, soybeans, rice, and vegetables. It mounts on the tractor's three-point hitch or is pulled as a trailed unit, with a horizontal boom carrying multiple nozzles that spray a wide swath in a single pass.
This guide covers everything you need to choose the right boom sprayer: mounted vs trailed, boom width, nozzle selection, pump types, drift control, and 2026 pricing.
1. Mounted vs Trailed Boom Sprayers — Which One for You?
The first major decision is whether to buy a mounted (3-point hitch) or trailed (wheeled) sprayer. Each has distinct advantages depending on your farm size and tractor fleet.
| Feature | Mounted (3-Point Hitch) | Trailed (Wheeled) |
|---|---|---|
| Tank capacity | 200-1,500 liters | 1,000-4,000 liters |
| Boom width range | 6-20 meters | 12-28 meters |
| Tractor HP needed | 25-80 HP | 50-150+ HP |
| Price range | $800-$8,000 | $8,000-$25,000 |
| Maneuverability | Excellent — tight turns | Moderate — wider turning circle |
| Filling time | Faster (smaller tank) | Longer but fewer refills |
| Field capacity | 5-15 hectares per day | 15-50 hectares per day |
| Best for | Small to mid-size farms (5-50 ha) | Large commercial farms (50-500+ ha) |
Our take: For most farmers with 5-50 hectares of row crops, a mounted boom sprayer with 800-1,200 liter tank and 12-16m boom offers the best balance of cost, productivity, and maneuverability. It works with a standard 50-80 HP tractor and costs a fraction of a trailed sprayer.
2. Choosing the Right Boom Width
Boom width directly determines your spraying productivity. A wider boom means fewer passes, less fuel, and less soil compaction. But it also requires a more powerful tractor and better boom suspension to maintain uniform spray height across uneven terrain.
| Boom Width | Recommended Tractor HP | Typical Tank Size | Hectares per Hour* | Best For |
|---|---|---|---|---|
| 6-8 meters | 25-40 HP | 200-500 L | 2-4 | Small fields, vegetables, orchards |
| 10-14 meters | 40-65 HP | 600-1,000 L | 4-8 | Mid-size row crop farms |
| 16-20 meters | 65-90 HP | 1,000-1,500 L | 7-14 | Large wheat, corn, soybean operations |
| 22-28 meters | 90+ HP | 2,000-4,000 L (trailed) | 12-20 | Commercial broadacre farming |
*At 8-12 km/h spraying speed with 80-100 L/ha application rate
A practical rule: choose a boom width that is approximately 2-2.5x your tractor's rear tire track width. If your tractor has 2m rear wheel spacing, an 8-10m boom ensures you cover tracks without excessive overlap.
3. Nozzle Selection — Matching Nozzle to Job
No single nozzle type works for every application. The right nozzle choice affects coverage uniformity, drift potential, and chemical efficacy.
| Nozzle Type | Droplet Size | Best For | Pressure Range | Drift Risk |
|---|---|---|---|---|
| Standard Flat Fan (XR) | Medium | Broadleaf herbicides, post-emerge | 1.5-4.0 bar | Moderate |
| Extended Range Flat Fan (XR) | Medium-Coarse | Pre-emerge herbicides, soil applied | 1.0-4.0 bar | Low-Medium |
| Air Induction (AI/ID) | Coarse-Very Coarse | Herbicides near sensitive crops | 2.0-5.0 bar | Very Low |
| Hollow Cone | Fine-Medium | Fungicides, insecticides, contact sprays | 3.0-7.0 bar | High |
| Twin Flat Fan | Medium | Fungicides (angled fans for coverage) | 2.0-5.0 bar | Moderate |
For most field crop spraying, a good all-round setup is standard flat fan nozzles at 2-3 bar pressure with 50 cm nozzle spacing on the boom. For drift-sensitive areas, switch to air induction nozzles — they produce larger droplets that resist wind drift while maintaining adequate coverage.
4. Pump Selection — The Heart of the Sprayer
The pump determines flow rate, pressure consistency, and chemical handling capability. Three main types are used in boom sprayers:
- Diaphragm pumps (most common) — 30-120 L/min flow, 3-15 bar pressure. Self-priming, handle abrasive chemicals well, can run dry without damage. The best choice for field crop sprayers. FOYA boom sprayers use high-quality diaphragm pumps as standard.
- Piston pumps — 20-80 L/min, up to 30 bar pressure. Used for orchard and vineyard spraying where higher pressure is needed for canopy penetration. More expensive and require clean chemical solutions.
- Centrifugal pumps — 100-500+ L/min, lower pressure (2-8 bar). Used on large trailed sprayers where high flow rates for agitation and fast tank filling matter more than high pressure.
For a mounted 800-1,200L boom sprayer, a 50-80 L/min diaphragm pump provides enough flow to run a 12-16m boom at typical field pressures (2-4 bar) while maintaining adequate tank agitation.
5. Essential Features to Look For
- Boom suspension system — A parallelogram or pendulum suspension keeps the boom level and at consistent height regardless of tractor tilt. Essential for hilly terrain.
- Section control valves — Manual or electric ball valves that let you shut off individual boom sections when overlapping or approaching field edges. Electric section control can save 5-15% on chemical costs.
- Mechanical or hydraulic boom folding — For transport, the boom should fold to a width that is legal for road travel (usually 2.5-3m). Mechanical folding is standard on smaller sprayers; hydraulic is better on 16m+ booms.
- In-line chemical inductor / eductor — Allows filling chemicals into the tank through a venturi system, reducing operator exposure to concentrated chemicals.
- Tank sight gauge or level indicator — Essential for knowing remaining volume at a glance. Calibrated markings in liters and percentage are standard.
Frequently Asked Questions
What size boom sprayer do I need for my tractor?
Boom width should match or exceed your rear tire track width. For 25-50 HP tractors: 6-12m booms. 50-90 HP: 12-18m. 90+ HP: 18-28m. Tank capacity should let you spray at least one full pass of your longest field without refilling.
Mounted vs trailed boom sprayer — which is better?
Mounted sprayers are best for farms up to 50 hectares — more affordable, easier to maneuver, and simpler to maintain. Trailed sprayers suit large commercial farms with 50+ hectares, offering larger tanks and heavier-duty boom stability systems.
Which nozzle type should I use for herbicide application?
Flat fan nozzles are the standard for most herbicides. For drift control near sensitive crops, use air induction (AI) nozzles — they produce coarse droplets that resist wind. Extended range flat fan (XR) nozzles are good for pre-emerge applications where pressure varies.
How much does a tractor boom sprayer cost?
Small mounted sprayers (6-8m, 200-500L): $800-$2,500. Mid-size mounted (10-14m, 600-1,000L): $2,500-$5,000. Large mounted (16-20m, 1,000-1,500L): $4,000-$8,000. Trailed sprayers: $8,000-$25,000+. FOYA offers mounted sprayers at factory-direct prices.
What pump type is best for a boom sprayer?
Diaphragm pumps are the most popular — they handle chemicals well, self-prime, and run dry without damage. For most field crop spraying, a 50-80 L/min diaphragm pump is ideal. Piston pumps suit orchards needing higher pressure. Centrifugal pumps work best on large trailed sprayers.
How do I prevent boom sprayer drift?
Six methods: (1) Air induction nozzles for larger droplets. (2) Keep boom low — flat fans at 50 cm, AI at 30-40 cm above canopy. (3) Spray below 15 km/h wind. (4) Use minimum recommended pressure. (5) Drift-reducing adjuvants. (6) Boom section control for automatic overlap shut-off.
Where can I buy a quality tractor boom sprayer with international shipping?
FOYA Machinery offers mounted boom sprayers from 6m to 20m, 200-1,500L tanks, with diaphragm pump, handheld spray gun, and nozzle kit included. 12-month warranty and worldwide shipping. Contact WhatsApp wa.me/8613027503590 or email mandy@myfoya.com.
